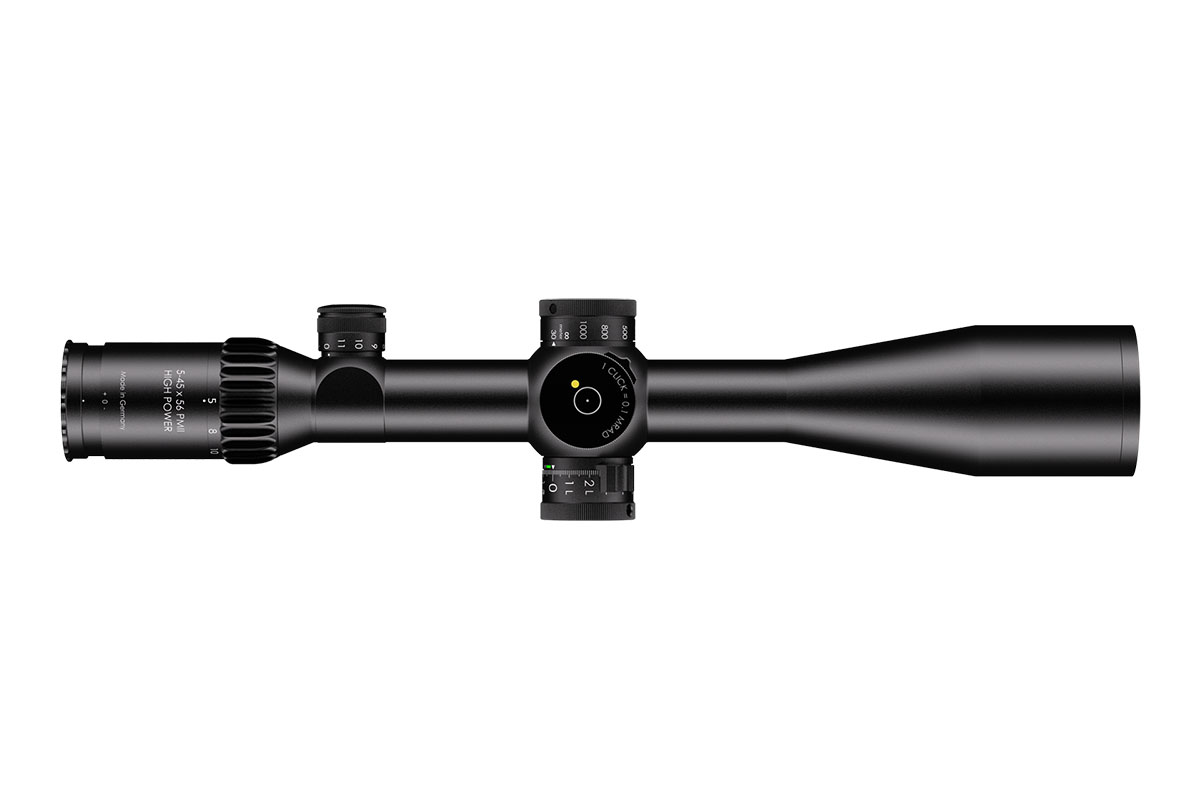

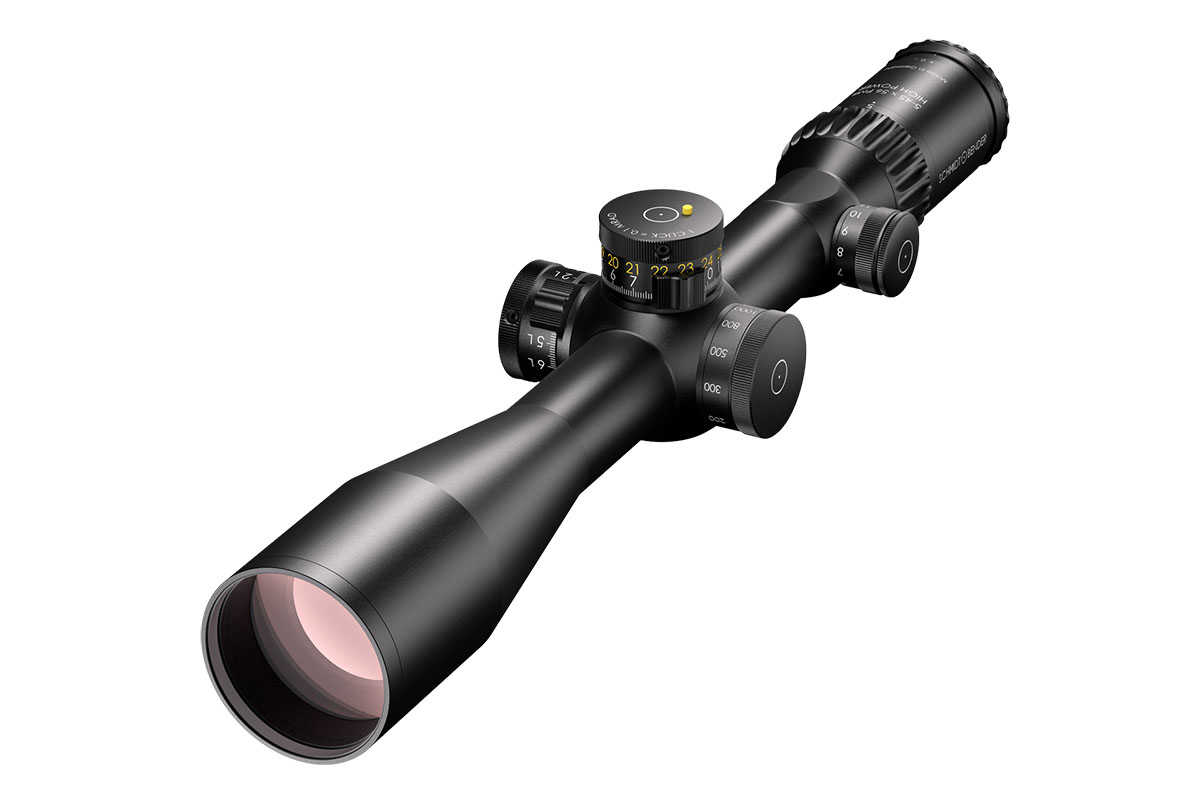

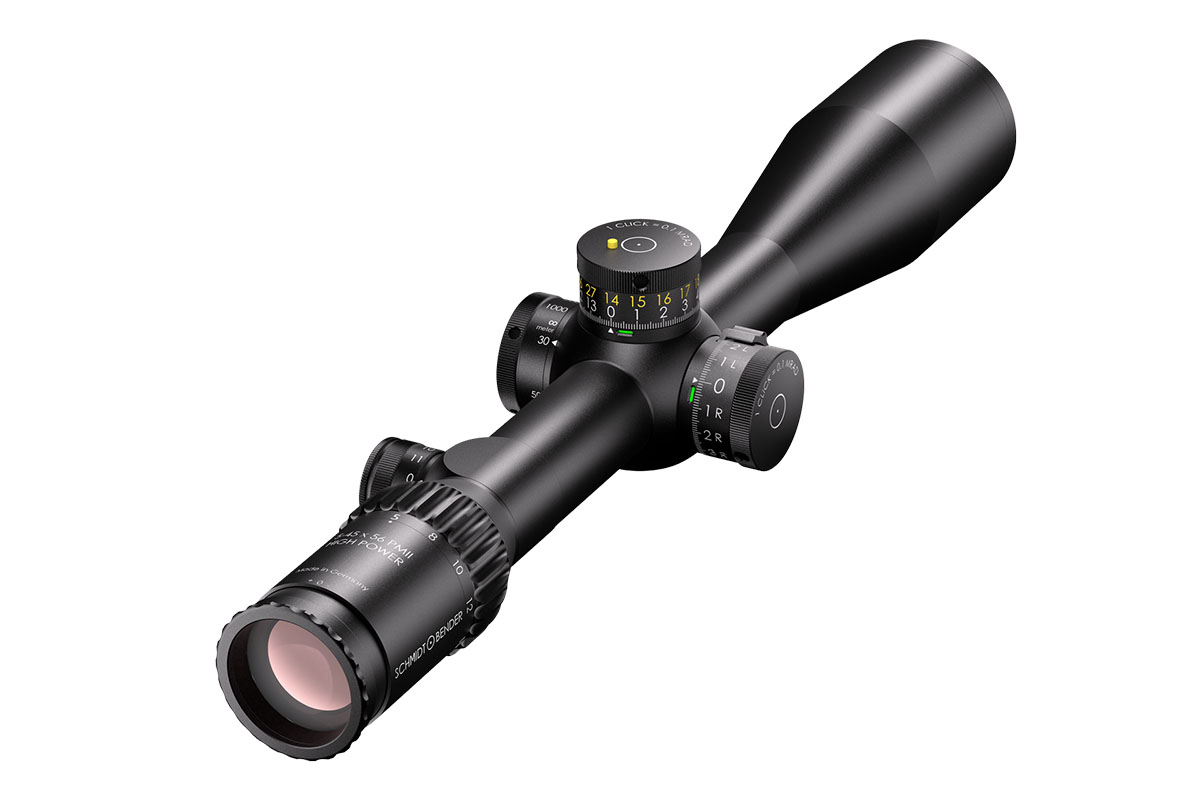

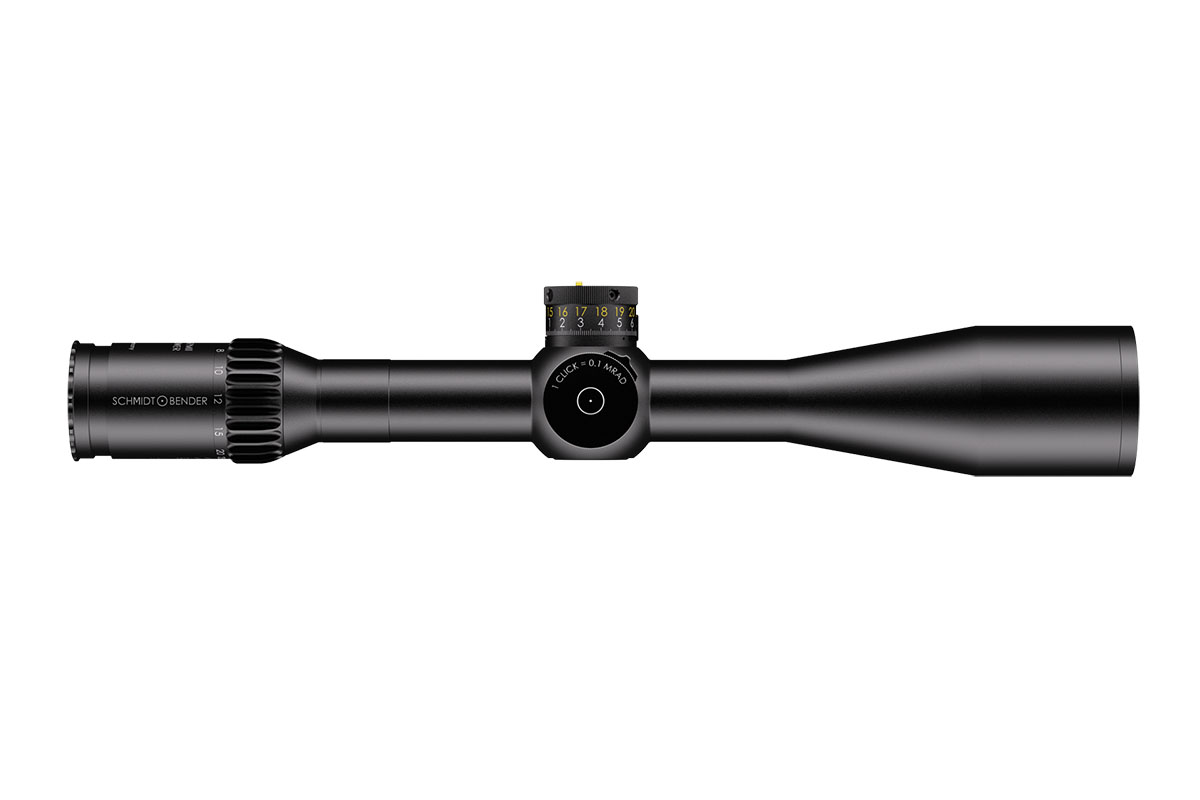

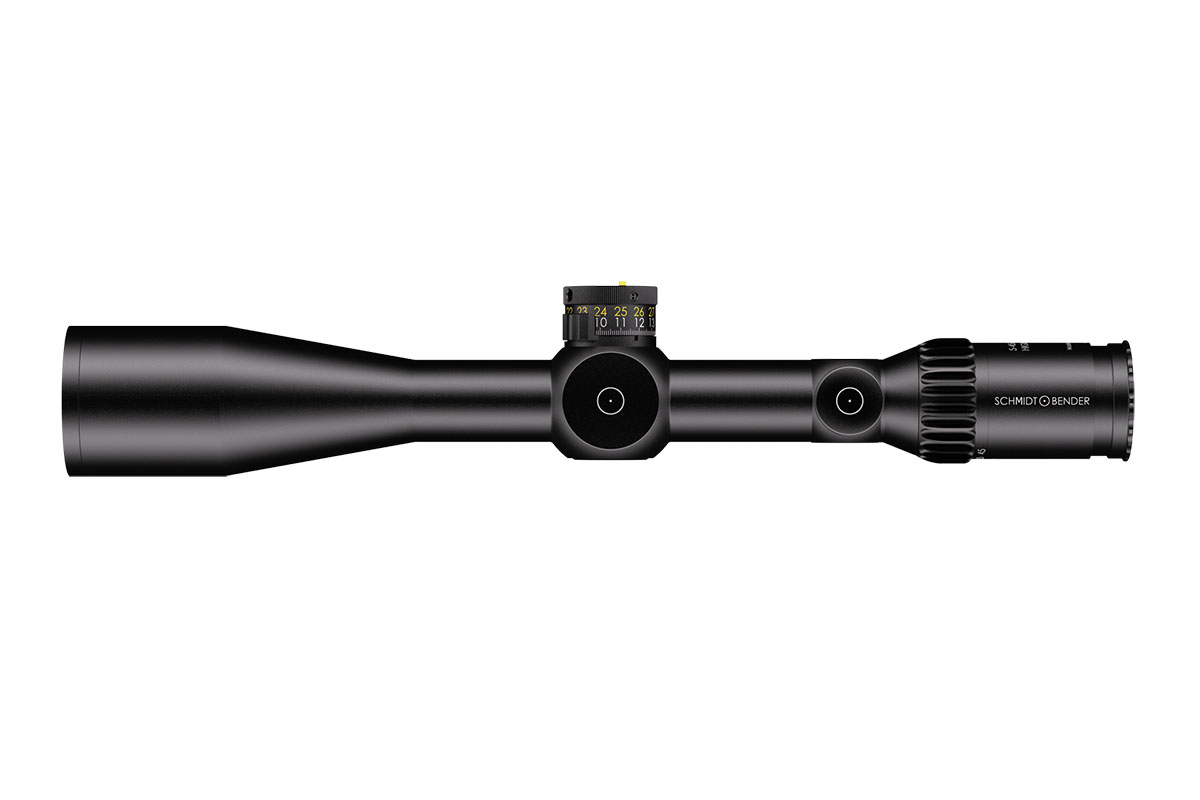

The 5–45×56 PM II High Power is a professional‑grade precision optic that merges a high‑performance riflescope with spotting‑scope capability. Designed for observation and ultra‑long‑range engagement, its enormous 9× zoom range (5–45×) makes it equally at home on reconnaissance, match, or tactical platforms where both identification and shot‑making accuracy are required.
Engineered for extreme clarity and reach, the 56 mm objective delivers excellent light gathering while the optical system maintains a large usable field of view across the entire zoom range — allowing fast situational awareness at low magnification and razor‑sharp detail at high power. The reticle sits in the first focal plane, so hold‑offs and subtensions remain precise at any magnification. The model features robust, lockable turrets with fine 0.1 mrad click values and very large usable internal adjustment ranges tailored for extreme‑range correction.
Built on a rugged 34 mm main tube, the High Power is constructed for demanding environments: it is fully weatherproof, fogproof and shock‑resistant. Despite its long reach, the design balances mechanical strength with practical ergonomics for field use.
Standout Features
Exceptional 5–45× magnification range for combined observation and precision shooting
Large 56 mm objective for outstanding light transmission and image resolution
First focal plane reticle for accurate ranging and holdover at any magnification
Precision turrets with 0.1 mrad click value and extensive elevation/windage adjustment range
Side/parallax adjustment for crisp focus from mid‑range to extreme distances
High optical transmission (~90%) and illuminated reticle options for low‑light operations
Robust 34 mm tube, weatherproof and built for professional use
Key Specifications
Magnification: 5–45×
Objective diameter: 56 mm
Main tube diameter: 34 mm
Field of view: approx. 7.8–0.9 m @ 100 m
Exit pupil: approx. 8.8–1.2 mm
Eye relief: 90 mm
Length: approx. 434 mm
Weight: approx. 1,130 g
Reticle: FFP (various tactical reticle options)
Click value: 0.1 mrad
Elevation adjustment range: ~27 mrad (internal ~29.6 mrad)
Windage adjustment range: ±6 mrad (internal ~21.1 mrad)
Parallax: adjustable
Illumination levels: multiple (illuminated reticle available)
Optical transmission: ~90%
Designed and manufactured to professional standards, the 5–45×56 PM II High Power is the go‑to optic for operators and precision shooters who require unmatched versatility, extreme reach and uncompromising optical and mechanical performance.
Die 5–45×56 PM II High Power – Präzision für Profis!
Die 5–45×56 PM II High Power von SCHMIDT U. BENDER ist ein professionelles Präzisionsglas, das die Leistung eines Hochleistungszielfernrohrs mit den Fähigkeiten eines Beobachtungsfernrohrs kombiniert. Entwickelt für Beobachtungen und ultra-langstrecken Einsätze, bietet sie einen beeindruckenden 9-fachen Zoom-Bereich (5–45×), der sowohl für Aufklärung, Wettkämpfe als auch taktische Einsätze geeignet ist, bei denen Identifikation und Schussgenauigkeit gefragt sind.
Hauptmerkmale
- Außergewöhnlicher 5–45× Vergrößerungsbereich für kombinierte Beobachtung und präzises Schießen
- Großes 56 mm Objektiv für hervorragende Lichtdurchlässigkeit und Bildauflösung
- Retikel im ersten Fokusebene für präzises Messen und Halten bei jeder Vergrößerung
- Präzise Türme mit 0.1 mrad Klickwert und umfangreichen Höhen-/Seitenverstellbereichen
- Seiten-/Parallaxenverstellung für scharfen Fokus von mittleren bis extremen Distanzen
- Hohe optische Transmission (~90%) und beleuchtete Retikeloptionen für Einsätze bei schwachem Licht
- Robuster 34 mm Tubus, wetterfest und für den professionellen Einsatz gebaut
Technische Spezifikationen
- Vergrößerung: 5–45×
- Objektivdurchmesser: 56 mm
- Durchmesser Hauptrohr: 34 mm
- Sichtfeld: ca. 7.8–0.9 m @ 100 m
- Austrittspupille: ca. 8.8–1.2 mm
- Augenabstand: 90 mm
- Länge: ca. 434 mm
- Gewicht: ca. 1,130 g
- Retikel: FFP (verschiedene taktische Retikeloptionen)
- Klickwert: 0.1 mrad
- Höhenverstellbereich: ~27 mrad (intern ~29.6 mrad)
- Seitenverstellbereich: ±6 mrad (intern ~21.1 mrad)
- Parallaxe: einstellbar
- Beleuchtungsstufen: mehrere (beleuchtetes Retikel verfügbar)
- Optische Transmission: ~90%
Die 5–45×56 PM II High Power wurde nach professionellen Standards entworfen und gefertigt und ist das ideale Glas für Betreiber und Präzisionsschützen, die unvergleichliche Vielseitigkeit, extreme Reichweite und kompromisslose optische sowie mechanische Leistung benötigen.
