MAGPUL MOE QUICK DETACH BIPOD FOR M-LOK Magpul offered a variety of bipods for quite some time, but none have attached as simply and quickly as the MOE QD Bipod for M-LOK. This new bipod provides shooters a quick-attach and detach function when using guns with an M-LOK hand guard or forend; by speeding up the attachment process via the integral attachment knob, you can get support when firing faster than ever before. To attach the bipod, simply insert the M-LOK stud into the M-LOK slot, rotate the bipod 45° counterclockwise so the stud is perpendicular to the M-LOK slot, and tighten the adjustment knob to securely fasten against the forend. No tools required. Aside from the quick, simple attachment method, the bipod is almost 40% lighter than some of thier existing bipods. The injection-molded construction won’t deform or break under pressure, and it provides a consistent, stable platform from which to shoot. The bipod plate – made from the same injection-molded material as the bipod itself – provides a solid mounting surface and features two (2) additional M-LOK lugs to promote proper alignment after installation, as well as increased stability and durability during recoil. The bipod is also equipped with a low-profile sling stud on the rear to allow sling attachment for easy carry and transportation of the firearm. The MOE QD bipod has a low stack height of 1.7” when folded, giving it a streamlined profile when the legs are stowed. When the legs are needed, they deploy and stow with the push of a button, snapping and locking into position. The legs extend from 7" to 10" and are adjusted easily and independently via a button located at the top of each leg. Within this adjustment range, there are seven (7) ½" spaced locking detents to fine tune the bipod’s deployed height. Additionally, the bipod’s soft, stepped, non-slip rubber feet grip a wide array of shooting surfaces; the feet are also easily removed with a roll-pin punch should shooters want to change them to something different (the bipod accepts most Atlas-pattern bipod feet). FEATURES: QUICK, SIMPLE INSTALLATION: The MOE QD Bipod installs via an adjustment knob Minimizes installation requirements since no other hardware is required COMPACT, LIGHTWEIGHT: 40% lighter than some other Magpul bipods Stack height of 1.7”; when extended legs measure 7”-10” in 0.5” increments VERSATILE LEGS AND FEET: Soft, stepped, non-slip rubber feet grip a wide array of shooting surfaces; the feet are also easily removed with a roll-pin punch Legs accept most Atlas-pattern bipod replaceable feet to best match the needs of your environment SPECIFICATIONS: Attachment: M-LOK Slots Materials: Polymer, steel Height, max: 10 in. Pan and Tilt: No Weight: 9 oz. Made in the USA.
Entdecke die MOE QUICK DETACH BIPOD für M-LOK – schnell, leicht und stabil!
Die MAGPUL MOE QUICK DETACH BIPOD für M-LOK ist die perfekte Lösung für Schützen, die eine einfache und schnelle Befestigung suchen. Diese neue Bipod ermöglicht dir eine rasche Anbringung und Abnahme, wenn du Gewehre mit einem M-LOK Handguard oder Forend verwendest. Dank des integrierten Befestigungsknopfes kannst du die Unterstützung beim Schießen schneller als je zuvor erhalten.
Einfacher Anbau
Um die Bipod zu befestigen, steckst du einfach den M-LOK-Stift in den M-LOK-Slot, drehst die Bipod um 45° gegen den Uhrzeigersinn, sodass der Stift senkrecht zum M-LOK-Slot steht, und ziehst den Einstellknopf fest, um die Bipod sicher am Forend zu befestigen. Es sind keine Werkzeuge erforderlich.
Leicht und stabil
Die Bipod ist fast 40% leichter als einige der bestehenden Bipods. Die spritzgegossene Konstruktion verformt sich nicht und bricht nicht unter Druck, und sie bietet eine konsistente, stabile Plattform zum Schießen. Die Bipod-Platte – aus demselben spritzgegossenen Material wie die Bipod selbst – bietet eine solide Montagefläche und verfügt über zwei zusätzliche M-LOK-Lugs, um eine ordnungsgemäße Ausrichtung nach der Installation zu fördern sowie die Stabilität und Haltbarkeit während des Rückstoßes zu erhöhen.
Praktische Funktionen

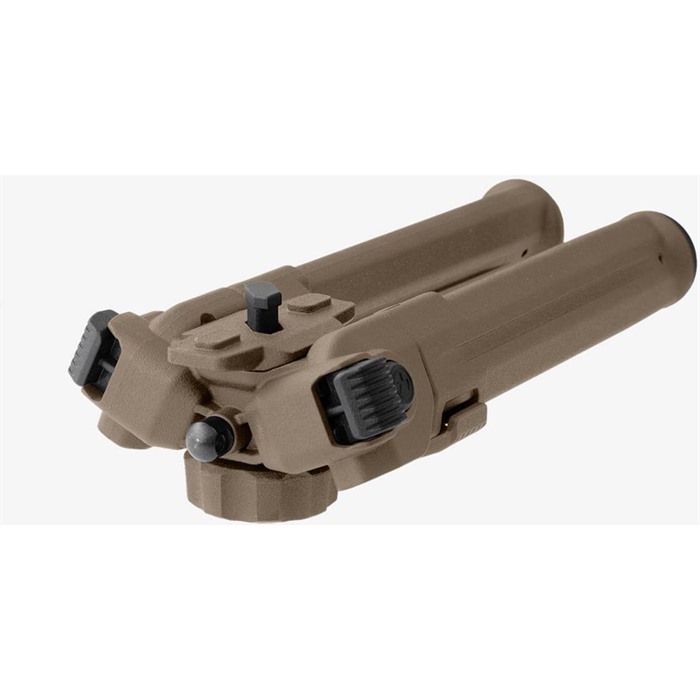

- Niedriges Profil: Die MOE QD Bipod hat eine niedrige Stapelhöhe von 1,7” im gefalteten Zustand, was ihr ein schlankes Profil verleiht.
- Einfache Bedienung: Die Beine lassen sich mit einem Knopfdruck ausfahren und einrasten.

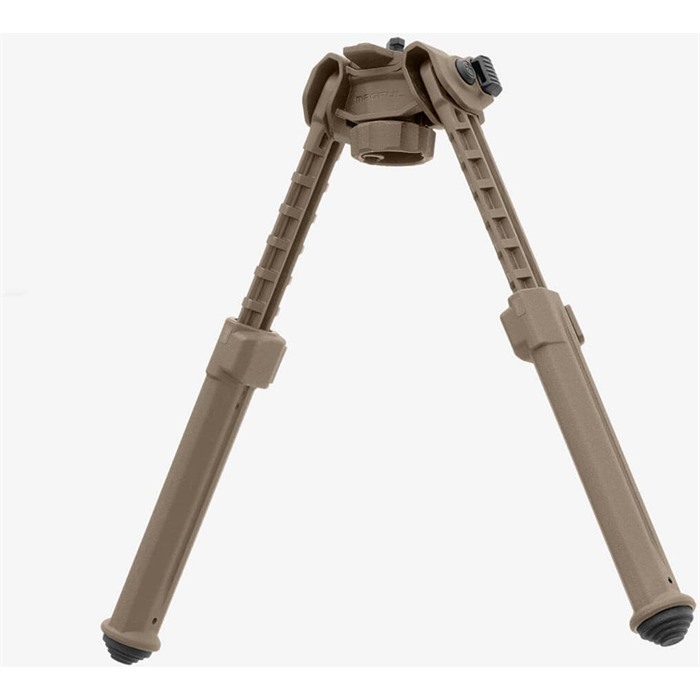

- Verstellbare Beine: Die Beine reichen von 7" bis 10" und lassen sich einfach und unabhängig über einen Knopf an der Oberseite jedes Beins einstellen.
- Rutschfeste Füße: Die weichen, gestuften, rutschfesten Gummifüße bieten Halt auf einer Vielzahl von Schießoberflächen und können bei Bedarf leicht mit einem Rollstift gewechselt werden.
Technische Daten
- Befestigung: M-LOK Slots
- Materialien: Polymer, Stahl
- Maximale Höhe: 10 in.
- Pan und Tilt: Nein
- Gewicht: 9 oz.
- Hergestellt in den USA.
