Eigenschaften
- Modell:
Universal Rifles
- Waffentyp:
Mauser
- Versandgewicht: 0,045kg
- Versandhöhe: 13mm
- Versandbreite: 76mm
- Versandlänge: 157mm
- UPC: 050806008281
Artikel-Nr.: 080097096
050806008281 Das federbelastete Werkzeug bietet konstanten, geraden Druck nach hinten, um die Bolzenlugs während des Lappens mit 600 bis 800 Körnung, Siliziumkarbid-Schleifmittel, quadratisch gegen den Empfänger zu halten. Es liefert bessere Ergebnisse als bloßer Daumendruck. Austauschbare Gewindehülsen passen auf die unten aufgeführten gängigen Modelle.Lieferzeit ca. 14-21 Tage.

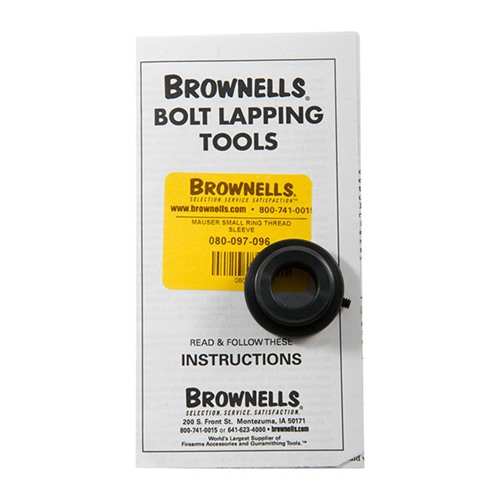

Die BOLT LAPPING TOOLS von BROWNELLS bieten dir ein innovatives, austauschbares Design, das konstanten Federdruck gewährleistet. So kannst du die Verriegelungslöcher präzise anpassen.
Das federbelastete Werkzeug sorgt für konstanten, geraden Druck, um die Verschlusslugs während des Lappens mit 600 bis 800er Siliconcarbid-Schleifmittel quadratisch gegen den Empfänger zu halten. Dies liefert bessere Ergebnisse als bloßer Daumendruck.

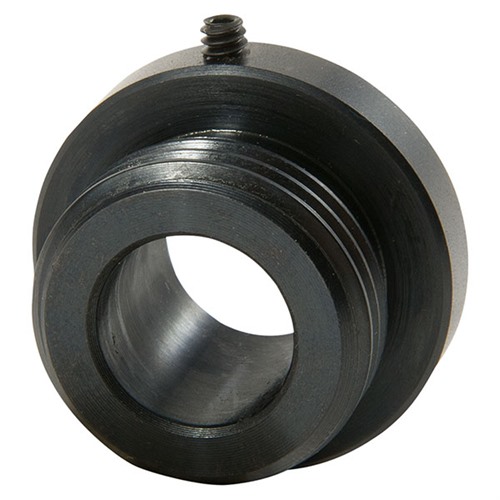

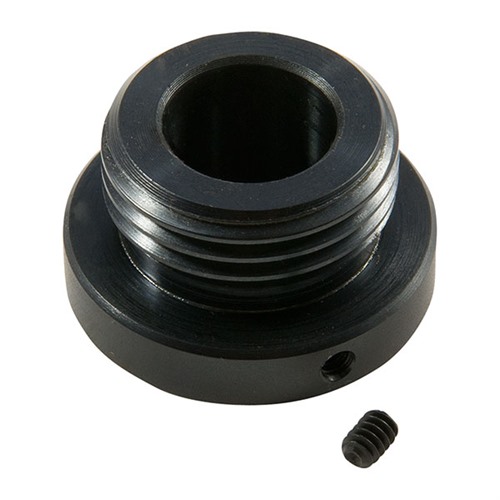

Das M14/M1A Set enthält einen großen Durchmesser Plunger und einen speziellen Lappengriff, der für diese Modelle erforderlich ist. Der Mauser Large Sleeve passt auf große Ring-Mauser-Modelle, während der Mauser Small für kleine Ring-Mauser-Modelle geeignet ist.
Der Savage Small Sleeve passt auf Savage-Modelle in allen Kalibern, außer Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) und Win Short Mag (WSM). Der Savage Large Sleeve passt nur auf Savage-Modelle in RUM, RSUM und WSM Kalibern.
Ein Gun Set enthält den Bolzenwerkzeugkörper, den Plunger und den passenden Sleeve für das aufgeführte Modell. Das M14/M1A One Gun Set enthält den Bolzenwerkzeugkörper, den großen Durchmesser Plunger, den passenden Sleeve und ein spezielles Bolzenlappenwerkzeug, das nur für M14/M1A/M1 Garand geeignet ist.
Das Kit enthält alle Werkzeuge, die notwendig sind, um alle in der Tabelle aufgeführten Modelle zu lappen. *Besonderer Preis, siehe unten.
Universal Rifles
Mauser
Very nice fit of parts. 31.08.2015
I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.
Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.
I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.
Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.
