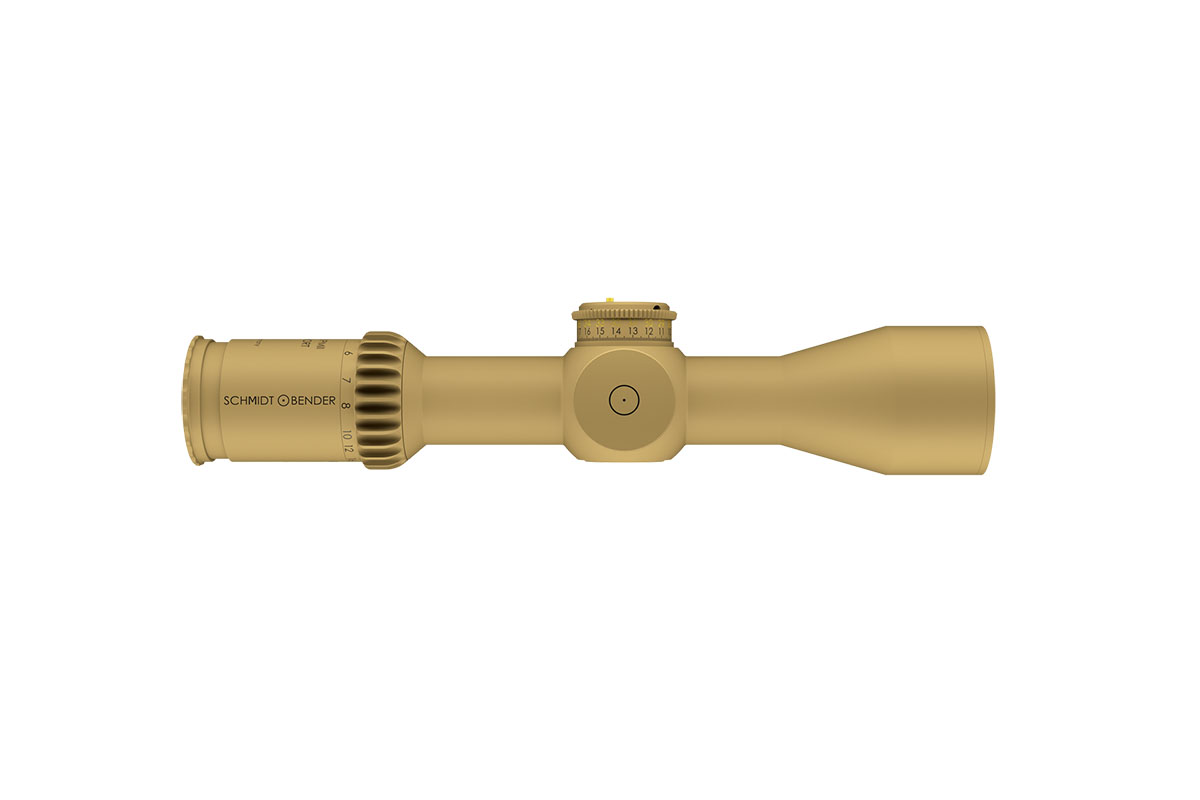

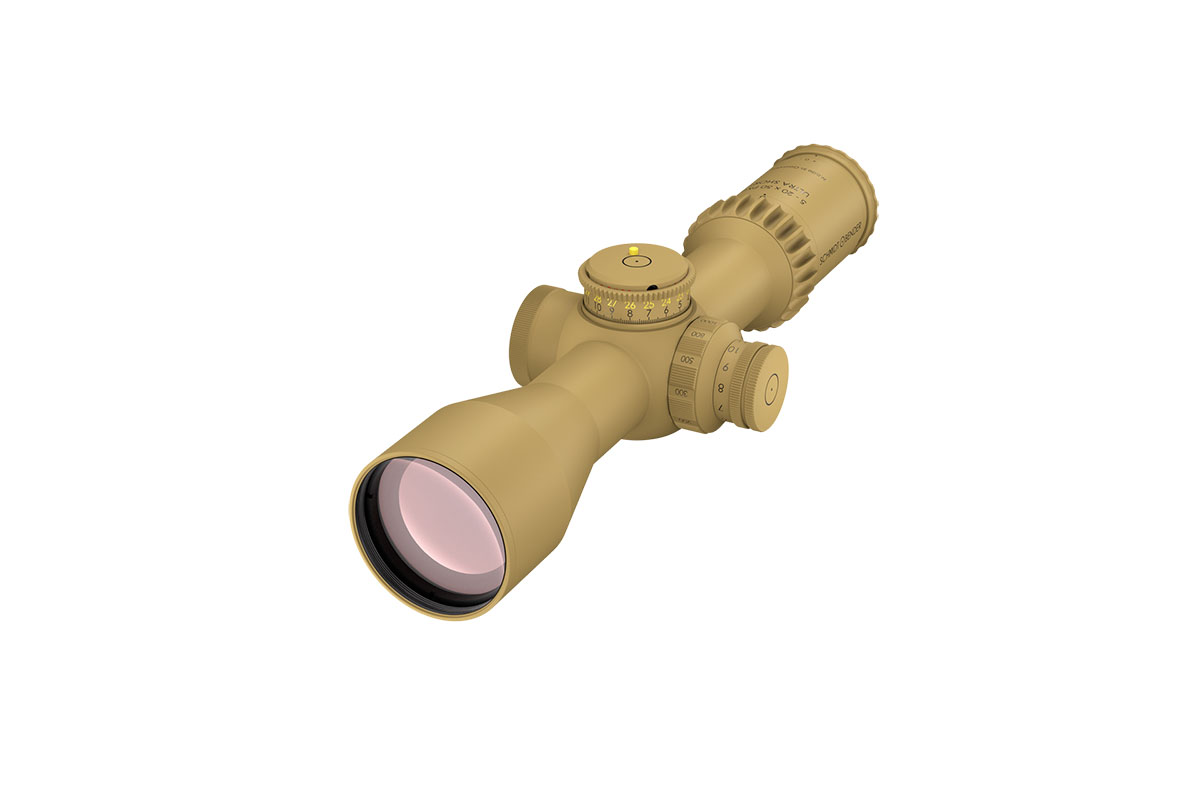

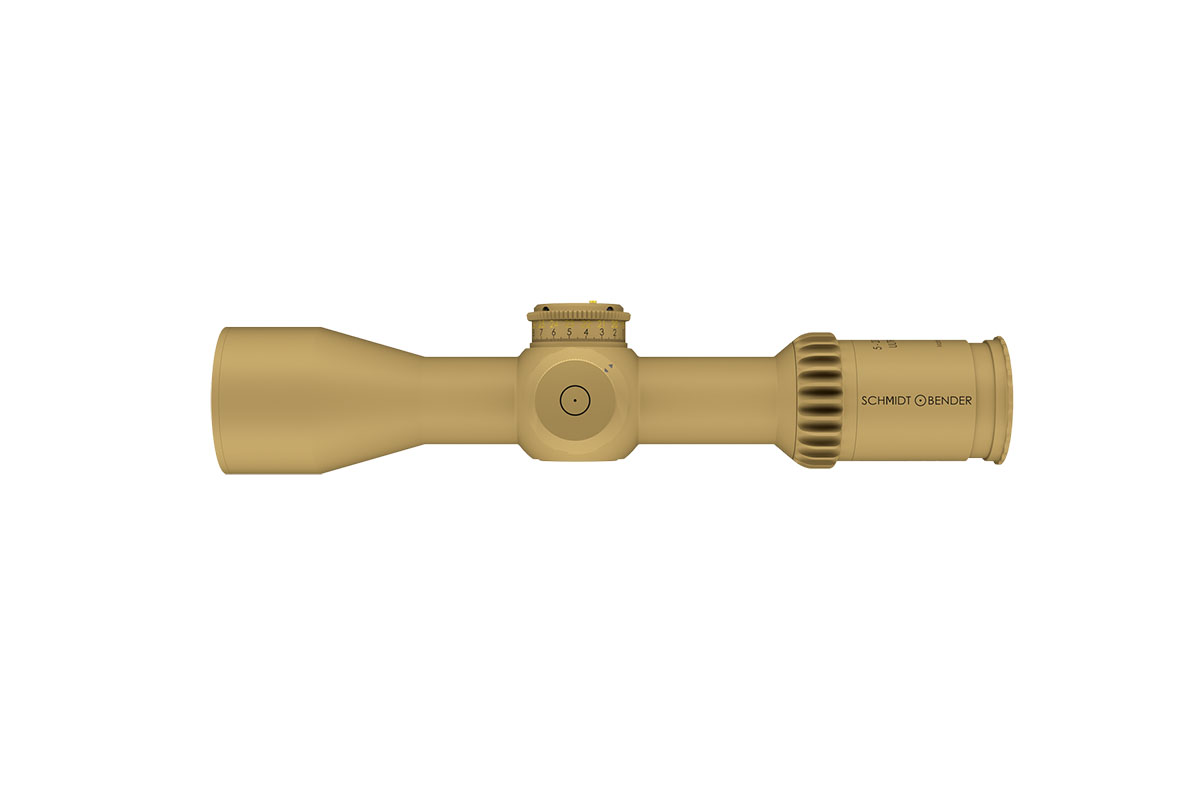

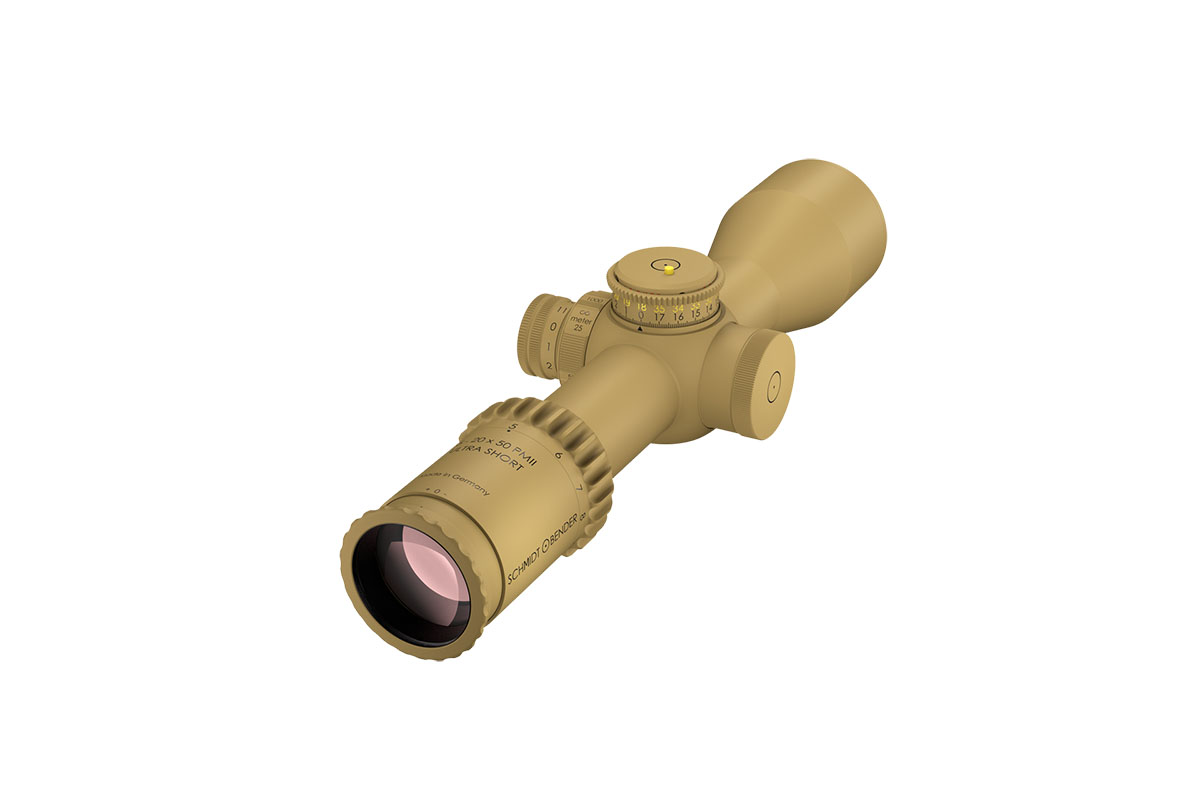

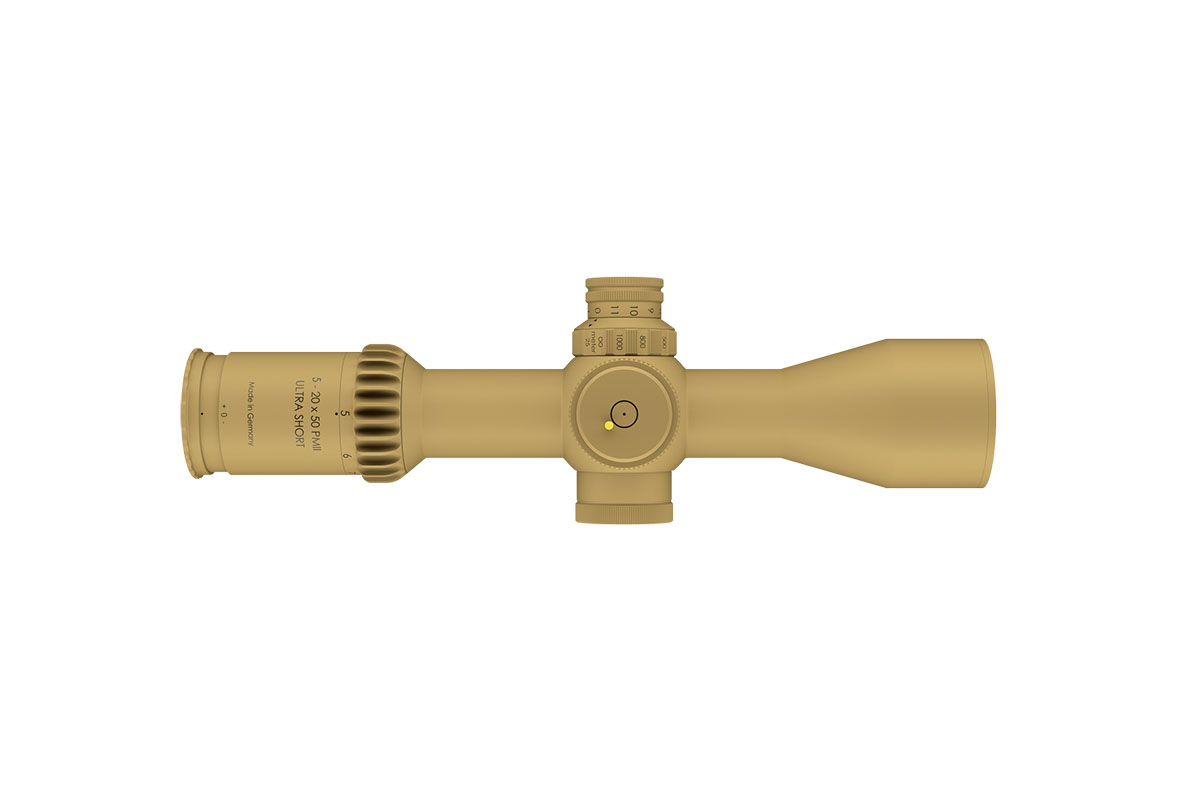

The 3‑20×50 PM II Ultra Short from Schmidt and Bender is a compact yet powerful riflescope engineered for high-performance engagements across medium to long distances. With its 3–20× magnification range and a 50 mm objective lens, it offers outstanding optical clarity and flexibility in a streamlined form factor.
Constructed around a robust 34 mm main tube, it maintains a length of approximately 340 mm and weighs around 900 g, striking an excellent balance between size and performance—ideal for mounting on compact platforms without compromising optics.
Its field of view spans roughly 13.0–2.1 m at 100 m, providing broad situational awareness at lower magnification and refined detail at the high end. The exit pupil ranges around 11.4–2.5 mm, and the eye relief is approximately 90 mm, supporting comfortable shooting in varied positions while maintaining strong light-gathering even as light fades.
Advanced features include first focal plane (FFP) illuminated reticle options, side parallax adjustment (from approx. 25 m to infinity), and a low-profile elevation turret optimized for tactical precision.
Key Specifications:
Magnification: 3–20×
Objective Lens Diameter: 50 mm
Main Tube Diameter: 34 mm
Field of View: approx. 13.0–2.1 m @100 m
Exit Pupil: approx. 11.4–2.5 mm
Eye Relief: approx. 90 mm
Length: approx. 340 mm
Weight: approx. 900 g
With precision optics, compact build, and rugged mechanical design, the 3‑20×50 PM II Ultra Short is built for serious shooters who demand premium performance in a versatile package.
Kompakt und leistungsstark – der perfekte Begleiter für dein Schießen!
Das 3–20×50 PM II Ultra Short von Schmidt und Bender ist ein kompaktes, aber leistungsstarkes Zielfernrohr, das für hochleistungsfähige Einsätze über mittlere bis lange Distanzen entwickelt wurde. Mit einem Vergrößerungsbereich von 3–20× und einem Objektivdurchmesser von 50 mm bietet es herausragende optische Klarheit und Flexibilität in einem schlanken Design.
Robuste Konstruktion
Das Zielfernrohr ist um ein robustes 34 mm Hauptrohr konstruiert, hat eine Länge von etwa 340 mm und wiegt rund 900 g. Damit wird ein hervorragendes Gleichgewicht zwischen Größe und Leistung erreicht – ideal für die Montage auf kompakten Plattformen, ohne die Optik zu beeinträchtigen.
Feld der Sicht und Komfort
- Das Sichtfeld erstreckt sich über etwa 13.0–2.1 m auf 100 m, was eine breite Situationswahrnehmung bei niedriger Vergrößerung und feine Details im hohen Vergrößerungsbereich bietet.
- Der Austrittspupille liegt bei etwa 11.4–2.5 mm, und der Augenabstand beträgt circa 90 mm, was bequemes Schießen in verschiedenen Positionen unterstützt und gleichzeitig eine starke Lichtaufnahme auch bei schwachem Licht gewährleistet.
Fortschrittliche Funktionen
Zu den fortschrittlichen Funktionen gehören:
- Illuminierte Absehen-Optionen im ersten Fokalfeld (FFP)
- Seitenparallaxenverstellung (von ca. 25 m bis unendlich)
- Ein niedrigprofilierter Höhenverstellturm, der für taktische Präzision optimiert ist.
Technische Spezifikationen
- Vergrößerung: 3–20×
- Durchmesser des Objektivs: 50 mm
- Durchmesser des Hauptrohrs: 34 mm
- Sichtfeld: ca. 13.0–2.1 m @100 m
- Austrittspupille: ca. 11.4–2.5 mm
- Augenabstand: ca. 90 mm
- Länge: ca. 340 mm
- Gewicht: ca. 900 g
Mit präziser Optik, kompaktem Aufbau und robuster mechanischer Konstruktion ist das 3–20×50 PM II Ultra Short für ernsthafte Schützen konzipiert, die in einem vielseitigen Paket eine erstklassige Leistung verlangen.
