BROWNELLS

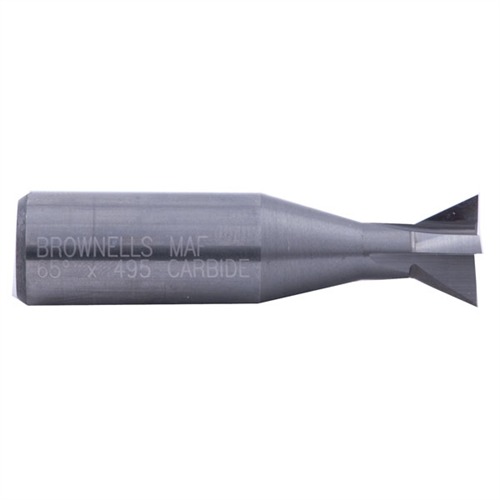

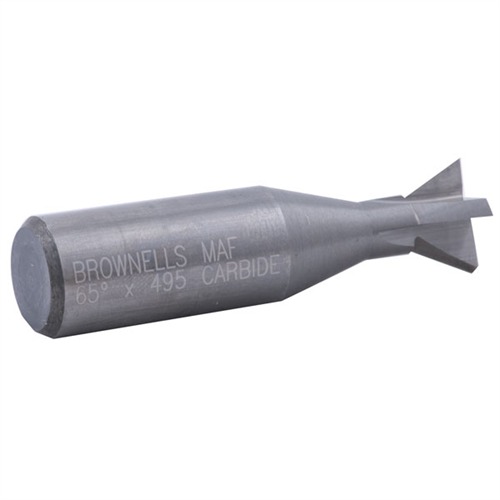

1911 CARBIDE DOVETAIL SIGHT BASE CUTTER

080621965
65\ Shoulder x .495"
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ¼" carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work. CAUTION: For use in milling machine only. Much harder and longer-lasting than HSS cutter. Use on hardened Colt factory slides. Solid carbide, 2" (5cm) long. .495" diameter cut. ½" (12.7mm) diameter shank. 65° shoulder.
117.9 117.9 1 EUR
Artikel-Nr.: 080621965
BROWNELLS Carbide Lo-Mount Sight Base Cutter
Herstellerproduktnummer: 800004950002 Diese Fräser sind speziell von uns entworfen und nach unseren Spezifikationen hergestellt, um den Schlitz für die Montage der Wichita und Novak Lo-Mount 1911 Auto Visiere zu schneiden. Verwende einen ¼" Hartmetall-Endfräser, um den Großteil des Materials zu entfernen (siehe Zeichnung oben), und mache dann den endgültigen Schwalbenschwanzschnitt. Der endgültige Schnitt zur Absenkung des hinteren Endes der Schlitten ist mit einem Endfräser durchzuführen und ist kein Teil des Visierbasisschnitts. Leicht untermaßig gefertigt, um Variationen bei Visierbasen und Frästoleranzen bei der Installation zu kompensieren. Aufgrund der Beliebtheit von individuellen 1911 Auto Pistolen, wirst du diesen Fräser häufig in deiner Custom-Arbeit verwenden. VORSICHT: Nur in einer Fräsmaschine verwenden. Viel härter und langlebiger als HSS-Fräser. Verwendung bei gehärteten Colt-Werkschlitten. Vollhartmetall, 2" (5cm) lang. Durchmesser des Schnitts .495". Schaftdurchmesser ½" (12,7mm). 65° Schulter.
117.9 EUR 0 117,90 € *
Nachbestellt, Lieferzeit ca. 4-12 Wochen aus dem Großlager.
Eigenschaften: Grad: 65

Eigenschaften

Grad: 65 Versandgewicht: 0,045kg Versandhöhe: 15mm Versandbreite: 74mm Versandlänge: 224mm

Artikeldetails

Made in USA



65\ Shoulder x .495"
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ¼" carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work. CAUTION: For use in milling machine only. Much harder and longer-lasting than HSS cutter. Use on hardened Colt factory slides. Solid carbide, 2" (5cm) long. .495" diameter cut. ½" (12.7mm) diameter shank. 65° shoulder.
