Eigenschaften
- Modell: L Frame
- Waffentyp: Smith & Wesson
- Versandgewicht: 0,024kg
- Versandhöhe: 5mm
- Versandbreite: 102mm
- Versandlänge: 109mm
Artikeldetails
US-Exportklassifizierung: 0A501.x

Artikel-Nr.: 713000168
Herst.-Nr.: P-1-02

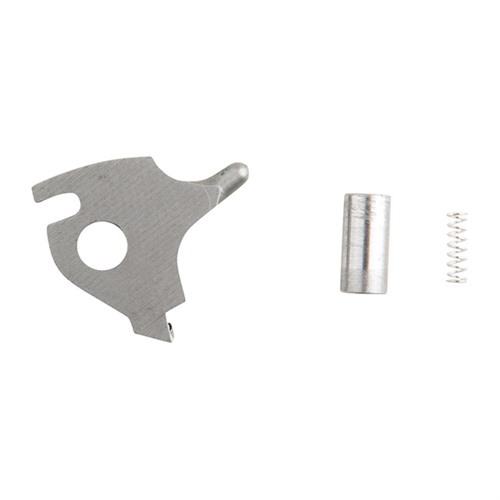

Die federbelasteten, längeren Hammernasen sorgen für eine konsistente, positive Zündung mit der leichtesten Hammerspannung, was einen leichteren und geschmeidigeren Betrieb ermöglicht. Hergestellt durch Draht-EDM und CNC-Präzisionsfräsverfahren, mit qualitätsgeprüfter Wärmebehandlung aus S7-Werkzeugstahl. Die Hammernasen sind gefräst, nicht gestanzt. Entwickelt, um robust zu sein und eine lange Lebensdauer zu bieten. Dieses Kit enthält Hammernase, Feder und Hammernase-Riegel. In der Regel ist ein normaler Austausch alles, was benötigt wird, obwohl einige werkseitige Variationen geringfügige Anpassungen erfordern können. Entwickelt für Smith & Wesson Zentralfeuer-Modelle, K, L und N.Das HAMMER NOSE KIT von POWER CUSTOM ist die perfekte Lösung für alle, die die Leistung ihrer Smith & Wesson Modelle K, L und N steigern möchten. Mit einer speziellen Federbelastung und längeren Hammernosen sorgt dieses Kit für eine konsistente und positive Zündung bei minimaler Hammerspannung, was eine leichtere und geschmeidigere Aktion ermöglicht.
Die Hammernosen werden durch Wire EDM und CNC-Präzisionsfräsprozesse hergestellt und aus S7-Werkzeugstahl qualitätsgeprüft wärmebehandelt. Im Gegensatz zu gestanzten Teilen sind die Hammernosen präzise bearbeitet, was ihre Langlebigkeit und Robustheit garantiert.
Bearbeitet aus S7-Werkzeugstahl. Für S&W K, L und N Modelle.
it didn'work 07.08.2016
Installed in a mod 66-1 S&W. tried lighten DA trigger pull. Installation was easy,no problems. Test fired ,3 misfires out of 6 DA, 1 out of 6 SA. Tried factory ammo,same results. Removed new firing pin,measured and compared with old,and no differences. Reinstalled old firing pin,no further problems. First time Power Custom has let me down.
Misfire problem solved. 02.11.2015
I have a recently acquired nearly unfired 1971 vintage model 19-3 that was misfiring (1 in 6) with 357 Magnum ammunition featuring CCI 550 primers, even when the DA trigger weight was increased to 10 lbs using a primer cup on the strain screw. Checking the hammer nose projection showed it was about 0.02 inch short of the thickness of a Dime. So, the obvious conclusion is that the Bangor Punta vintage hammer nose was just a bit short.
Since parts for these older models can be difficult to find I decided to try the Power Custom hammer nose for a post 1988 lockwork. The new hammer nose dropped right in and needed no fitting at all. The projection is a bit on the heavy side, about 0.06 inch per my calibrated eyeball but a 150 round test in both double and single action showed no indication at all of an overstruck primer and there were zero misfires in that test.
Kudo's to Power Custom for the instruction/guidance that was packaged with the kit. While I didn't need to do any fitting it was nice to see they provided clear illustrations of the fitting points. It was also helpful to see clear instructions on how it should function and how to test for correct function.
Based on my single sample test I think it is actually fairly safe to assume that this particular hammer nose will fit K frame hammers from 1971 to later vintages. I also think that the tensioning spring will act to protect the hammer nose a bit when compared to the older version.
